首页 产品 工业网络基础设施 以太网交换机 PoE 交换机 EDS-G4012 系列 EDS-G4012-4GC-LV
MOXA

PoE 交换机

Moxa PoE/PoE+/PoE++ 交换机型号多样，端口输出功率高达 90 W，既可实现高速数据传输又能为高功率设备远程供电。PoE 交换机采用工业级设计，为每个 LAN 端口提供 4kV 的浪涌保护。此外，智能 PoE 管理能简化 PoE 网络部署和维护。

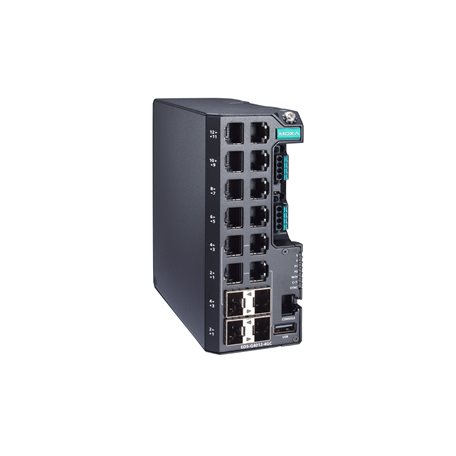

EDS-G4012-4GC-LV
EDS-G4012 系列

Managed Full Gigabit Ethernet switch with 8 10/100/1000BaseT(X) ports, 4 10/100/1000BaseT(X) or 100/1000BaseSFP ports, dual power supply 12/24/48 VDC, -10 to 60°C operating temperature

Ethernet Interface

  • 10/100/1000BaseT(X) Ports (RJ45 connector)

    • 8
      Auto MDI/MDI-X connection
      Auto negotiation speed
      Full/Half duplex mode

  • Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP)

    • 4

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3z for 1000BaseX
      IEEE 802.3bz for 2.5GBaseX
      IEEE 802.3x for flow control
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1X for authentication
Ethernet Software Features

  • Filter

    • GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier

  • Management

    • IPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Port Mirror, Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB

  • MIB

    • P-BRIDGE MIB, Q-BRIDGE MIB, IEEE8021-SPANNING-TREE-MIB, IEEE8021-PAE-MIB, IEEE8023-LAG-MIB, LLDP-EXT-DOT1-MIB, LLDP-EXT-DOT3-MIB, SNMPv2-MIB, RMON MIB Groups 1, 2, 3, 9

  • Redundancy Protocols

    • STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation

  • Security

    • Broadcast storm protection, Rate Limit, Trust access control, Static Port Lock, MAC Sticky, HTTPS/SSL, SSH, RADIUS, TACACS+, Login and Password Policy

  • Time Management

    • SNTP, NTP Server/Client, NTP Authentication

  • Protocols

    • IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Switch Properties

  • MAC Table Size

    • 16 K

  • Jumbo Frame Size

    • 9.216 KB

  • Max. No. of VLANs

    • 256

  • VLAN ID Range

    • VID 1 to 4094

  • IGMP Groups

    • 512

  • Priority Queues

    • 4

  • Packet Buffer Size

    • 1 MB
LED Interface

  • LED Indicators

    • PWR1, PWR2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL, SYNC
Serial Interface

  • Console Port

    • RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
USB Interface

  • USB Connector

    • USB Type A (Reserved)
Input/Output Interface

  • Alarm Contact Channels

    • 1, Relay output with current carrying capacity of 1 A @ 24 VDC

  • Digital Input Channels

    • 1

  • Digital Inputs

    • +13 to +30 V for state 1
      -30 to +3 V for state 0
      Max. input current: 8 mA

  • Buttons

    • Reset button
DIP Switch Configuration

  • DIP Switches

    • Turbo Ring, Master, Coupler, Reserve
Power Parameters

  • Connection

    • 2 removable 4-contact terminal block(s)

  • Pre-installed Power Module

    • PWR-100–LV

  • Note

    • The EDS-G4012 Series supports modular power supplies. The model names and power parameters are determined by the installed power module.

      For example:
      EDS-G4012-4GC-T + PWR-100–LV = EDS-G4012-4GC-LV-T
      EDS-G4012-4GC-T + PWR-105-HV-I = EDS-G4012-4GC-HV-T

      If you install a different power module, refer to the specifications of the corresponding model. For example, if you replace the power module of the EDS-G4012-4GC-LV-T with the PWR-105–HV-I, refer to the specifications of the EDS-G4012-4GC-HV-T.

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Input Current

    • 12-48 VDC, 1.50-0.40 A or 24 VDC, 0.70 A

  • Power Consumption (Max.)

    • 12.68 W

  • Max. PoE Power Output per Port

    • 90 W

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • IP Rating

    • IP40

  • Dimensions

    • 55 x 140 x 122.5 mm (2.17 x 5.51 x 4.82 in)

  • Weight

    • 881.5 g (1.94 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

  • Housing

    • Metal
Environmental Limits

  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Industrial Cybersecurity

    • IEC 62443-4-1
      IEC 62443-4-2

  • Safety

    • UL 61010-2-201, EN 62368-1 (LVD)

  • EMC

    • EN 55032/35, EN 61000-6-2/-6-4

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Vibration

    • IEC 60068-2-6

  • Shock

    • IEC 60068-2-27

  • Freefall

    • IEC 60068-2-32

  • Railway

    • EN 50121-4

  • Traffic Control

    • NEMA TS2
MTBF

  • Time

    • 867,981 hrs

  • Standards

    • Telcordia SR332
Warranty
