EN 50155 交换机

Moxa 获得 IRIS 认证，提供多种强固型以太网交换机产品，符合 EN 50155 标准基本要求。这些产品已应用于全球各地的许多轨道和地铁系统。Moxa 为列车建造商提供创新解决方案和技术，确保运输的安全和效率，显著减少轨道交通系统运行、维护的成本和时间。

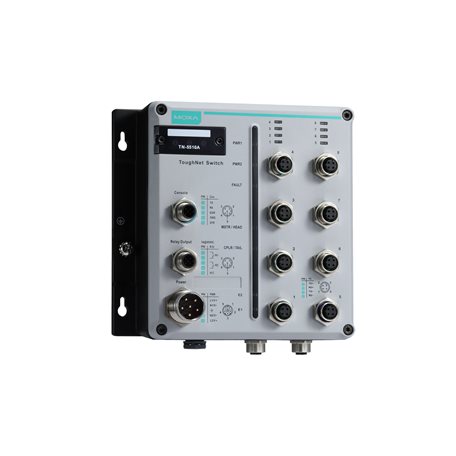

TN-5510A-2GTXBP-WV-T
TN-5500A 系列

Layer 2 managed Ethernet switch with 8 10/100BaseT(X) and 2 10/100/1000 Base-T(X) ports with M12 connector with bypass relay function, 24-110 VDC dual power input, -40 to 75°C operating temperature

Input/Output Interface

  • Alarm Contact Channels

    • 2 x relay output in one M12 A-coded 5-pin male connector with current carrying capacity of 1 A @ 30 VDC
Ethernet Interface

  • 10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector with bypass relay)

    • 2

  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 8

  • Standards

    • IEEE 802.1D-2004 for Spanning Tree Protocol
      IEEE 802.1p for Class of Service
      IEEE 802.1Q for VLAN Tagging
      IEEE 802.1s for Multiple Spanning Tree Protocol
      IEEE 802.1w for Rapid Spanning Tree Protocol
      IEEE 802.1X for authentication
      IEEE 802.3 for 10BaseT
      IEEE 802.3ab for 1000BaseT(X)
      IEEE 802.3ad for Port Trunk with LACP
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control
Ethernet Software Features

  • Broadcast Forwarding

    • IP directed broadcast, broadcast forwarding

  • Configuration Options

    • Command Line Interface (CLI), Command Line Interface (CLI) through Serial/Telnet/SSH, Web Console (HTTP/HTTPS), Windows Utility

  • Filter

    • 802.1Q, GMRP, GVRP, IGMP v1/v2/v3, Port-based VLAN, Static Multicast

  • Industrial Protocols

    • EtherNet/IP Adapter (Slave), Modbus TCP Server (Slave)

  • Management

    • Back Pressure Flow Control, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, IOxpress, LLDP, Port Mirror, QoS/CoS/ToS, RARP, RMON, SMTP, SNMP Inform, SNMP Trap, Syslog, Telnet, Account Management

  • MIB

    • Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB

  • Redundancy Protocols

    • Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, Turbo Ring with DRC

  • Security

    • Broadcast storm protection, HTTPS/SSL, Local Account Accessibility, TACACS+, Port Lock, RADIUS, Rate Limit, SSH

  • Time Management

    • IEEE 1588 PTP v1/v2, NTP Server/Client, SNTP
Switch Properties

  • IGMP Groups

    • 256

  • Max. No. of VLANs

    • 64

  • VLAN ID Range

    • VID 1 to 4094
LED Interface

  • LED Indicators

    • STATE, PWR1, PWR2, FAULT, 10/100/1000M
Serial Interface

  • Console Port

    • M12 A-coded male connector
Power Parameters

  • Input Current

    • 0.56 A @ 24 VDC, 0.13 A @ 110 VDC

  • Input Voltage

    • 24/36/48/72/96/110 VDC, Redundant dual inputs

  • No. of Power Inputs

    • 2

  • Operating Voltage

    • 16.8 to 137.5 VDC

  • Overload Current Protection

    • Supported

  • Power Connector

    • M23 connector

  • Reverse Polarity Protection

    • Supported
Physical Characteristics

  • Housing

    • Metal

  • IP Rating

    • IP54

  • Dimensions

    • 185 x 180.9 x 76 mm (7.28 x 7.12 x 2.99 in)

  • Weight

    • 1805 g (3.97 lb)

  • Installation

    • DIN-rail mounting (optional), Wall mounting
Environmental Limits

  • Operating Temperature

    • -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

  • Altitude

    • 2000 m
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Freefall

    • IEC 60068-2-31

  • Radio Frequency

    • FCC

  • Railway

    • EN 50121-4, EN 50155, IEC 60571

  • Railway Fire Protection

    • EN 45545-2

  • Safety

    • IEC 60950-1, UL 61010-2-201

  • Shock

    • IEC 60068-2-27, IEC 61373, EN 50155

  • Vibration

    • IEC 60068-2-64, IEC 61373, EN 50155
Declaration

  • Green Product

    • RoHS, CRoHS, WEEE
MTBF

  • Time

    • 742,880 hrs

  • Standards

    • Telcordia SR332
Warranty
