千兆以太网 SFP 模块

Moxa 针对千兆以太网的小封装可插拔收发器 (SFP) 以太网光纤模块，确保覆盖广泛的网络传输距离。

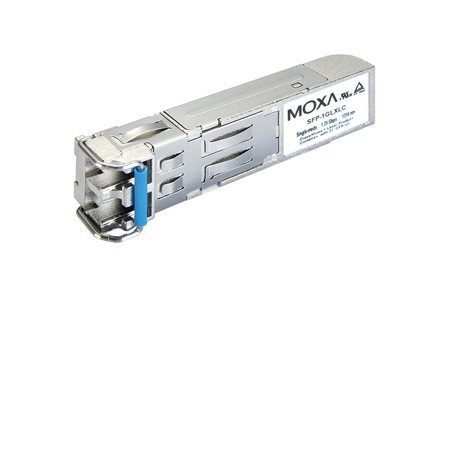

SFP-1G20BLC-T
SFP-1G 系列

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature

Ethernet Interface

  • Ports

    • 1

  • Connectors

    • Duplex LC connector
      Simplex LC connector (WDM-type only)

  • Optical Fiber

    •   Gigabit Ethernet SFP
      SFP-SX SFP-LSX SFP-LX SFP-LH
      Transceiver Type Multi-Mode Multi-Mode Single-mode Single-mode
      Fiber Cable Type OM1 OM2 OM2 OM1 G.652 G.652
      Typical Distance 300 m 550 m 1 km 2 km 10 km 30 km
      Wavelength Typical (nm) 850 1310 1310 1310
      TX Range (nm) 830 to 860 1270 to 1355 1280 to 1355 1280 to 1355
      RX Range (nm) 770 to 860 1260 to 1610 1260 to 1610 1260 to 1610
      Optical Power TX Range (dBm) -4 to -9.5 -1 to -9 -3 to -9 -3 to -8
      RX Range (dBm) 0 to -18 -1 to -19 -3 to -21 -3 to -23
      Link Budget (dB) 8.5 10 12 15
      Dispersion Penalty (dB) 4.3 3.6 5 5 1 1
      Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.

  • Optical Fiber

    •   Gigabit Ethernet SFP
      SFP-LHX SFP-ZX SFP-EZX SFP-EZX-120
      Transceiver Type Single-mode Single-mode Single-mode Single-mode
      Fiber Cable Type G.652 G.652 G.652 G.652
      Typical Distance 40 km 80 km 110 km 120 km
      Wavelength Typical (nm) 1310 1550 1550 1550
      TX Range (nm) 1280 to 1340 1530 to 1570 1530 to 1570 1530 to 1570
      RX Range (nm) 1260 to 1610 1260 to 1610 1260 to 1610 1100 to 1600
      Optical Power TX Range (dBm) +3 to -4 +5 to 0 +5 to 0 +3 to -2
      RX Range (dBm) -1 to -24 -1 to -24 -9 to -30 -8 to -33
      Link Budget (dB) 20 24 30 31
      Dispersion Penalty (dB) 1 1 1 2
      Note: When connecting the SFP-LHX, ZX, EZX, or EZX-120, we recommend using an attenuator to prevent the transceiver from being damaged by excessive optical power.

  • Optical Fiber

    •   WDM Gigabit Ethernet SFP
      SFP-10A SFP-10B SFP-20A SFP-20B
      Transceiver Type Single-mode Single-mode
      Fiber Cable Type G.652 G.652
      Typical Distance 10 km 20 km
      Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310 TX 1310, RX 1550 TX 1550, RX 1310
      TX Range (nm) 1270 to 1355 1530 to 1570 1270 to 1355 1530 to 1570
      RX Range (nm) 1480 to 1580 1260 to 1360 1480 to 1580 1260 to 1360
      Optical Power TX Range (dBm) -3 to -9 -2 to -8
      RX Range (dBm) -3 to -21 -2 to -23
      Link Budget (dB) 12 15
      Dispersion Penalty (dB) 2 3
      Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC).
      Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.

  • Optical Fiber

    •   WDM Gigabit Ethernet SFP
      SFP-40A SFP-40B
      Transceiver Type Single-mode
      Fiber Cable Type G.652
      Typical Distance 40 km
      Wavelength Typical (nm) TX 1310, RX 1550 TX 1550, RX 1310
      TX Range (nm) 1290 to 1330 1530 to 1570
      RX Range (nm) 1480 to 1580 1260 to 1360
      Optical Power TX Range (dBm) +2 to -3
      RX Range (dBm) -1 to -23
      Link Budget (dB) 20
      Dispersion Penalty (dB) 1
      Note: WDM-type SFP modules must be used in pairs (e.g., SFP-1G10ALC and SFP-1G10BLC).
      Note: When connecting the SFP-40A and 40B, we recommend using an attenuator to prevent damage caused by excessive optical power.

  • Optical Fiber

    • Typical Distance: To reach the typical distance of specified fiber transceiver, please refer to formula: Link budget(dB) > dispersion penalty(dB) + total link loss(dB)
Power Parameters

  • Power Consumption

    • Max. 1 W
Environmental Limits

  • Operating Temperature

    • -40 to 85°C (-40 to 185°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • Safety

    • CE, FCC, TÜV (EN 60825), UL 60950-1

  • Maritime

    • DNV-GL
Warranty
